GAB series is a mechanical cutter which enables powerful cutting work of waste plastic, fishing net and blue tarp.

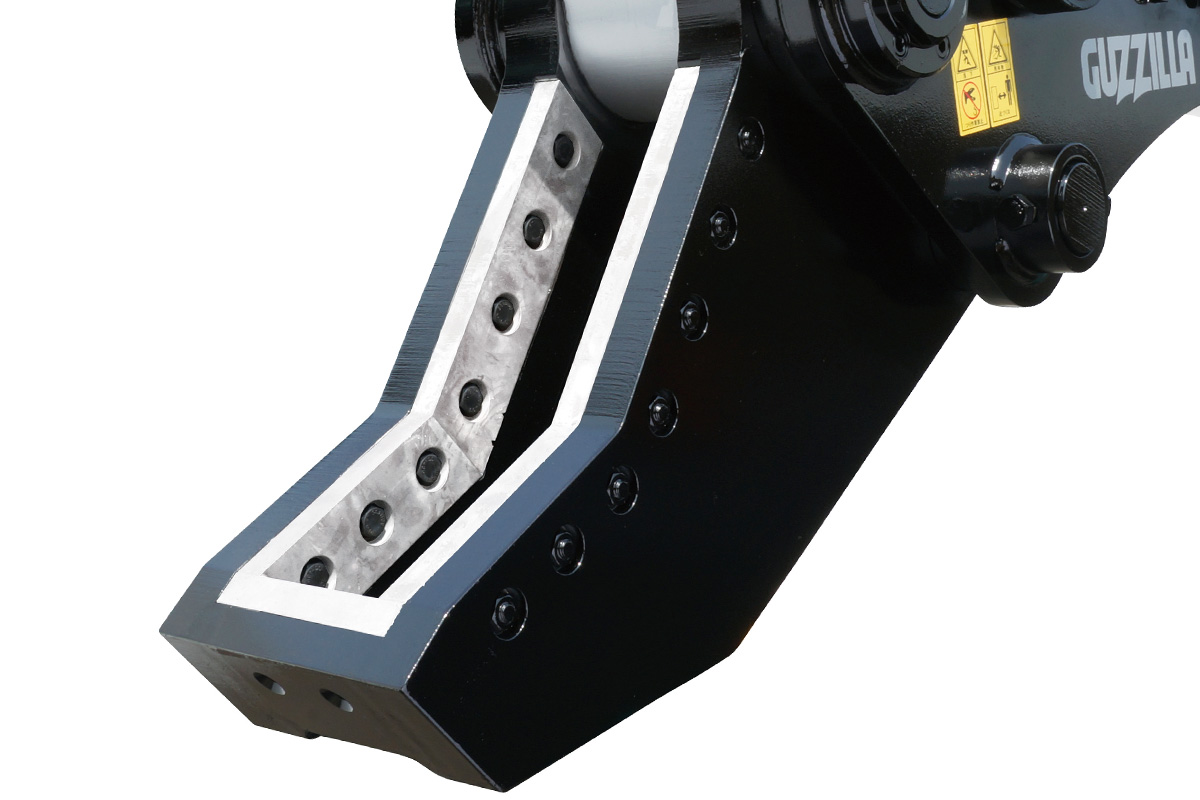

Covered with a long blade to the tip
A special steel blade that cover to the tip of cutter cuts waste plastic, fishing net and blue tarp easily.The blade is replaceable and can be used on 2 sides reversible. It brings reduction of maintenance cost and also easy maintenance.
Tarpaulins and fishing nets can be cut in an instant.
It can powerfully cut objects such as tarpaulins, fishing nets, and plastic pallets. In addition, it is equipped with our original link mechanism that is gentle on the excavator stick, which has been developed for the Grasper series. The adapter parts such as pins and spacers are common to those of Grasper.
SPEC
| Model name | Class of excavator[ton] | Length A[mm] | Max. jaw opening B[mm] | Min. jaw opening C[mm] | Total width D[mm] | Cutting blade length E[mm] | Tip cutting force F[kN] | Center cutting force G[kN] | Mass[kg] |
|---|---|---|---|---|---|---|---|---|---|
 GAB-60 | 6 - 8 | 1000 | 540*1 | -280*1 | 465 | 382 | 158*1 | 250*1 | 410 |
 GAB-120 | 12 - 14 | 1250 | 680*1 | -300*1 | 580 | 478 | 284*1 | 519*1 | 780 |
･ The numerical values marked with *1 may vary slightly depending on the model to be installed.
･ We recommend reinforcing the stick of a hydraulic excavator that has this product installed.
･ The attachment cannot be installed on a hydraulic excavator of a different class.
