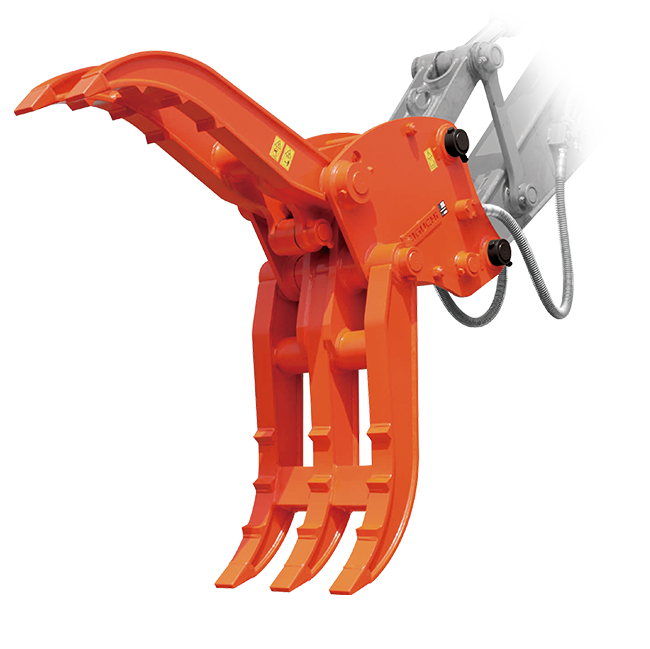

Tilt-type Grapple Grasper VL
Tilt Action Brings Various Grip Angles and
Makes Grappling Work Easier
Long-selling and flagship Product of TAGUCHI.
You can choose the model that suits your work from a wide range of products.

Change the grip angle with tilt action brings
Easier work in various job sites
Since it is possible to tilt while grasping an object, you can do a loading work safely and easily.
It is very easy to operate and attach / detach with simple structure.
SPEC
Model name | Class of excavator[ton] | Max. operating pressure[MPa] | Max. claw opening A[mm] | Length B[mm] | Claw width C[mm] | Claw length D[mm] | Mass[kg] |
---|---|---|---|---|---|---|---|
![]() GV-09L | 0.7 - 1.5 | 20.6 | 770 | 735 | 230 | 440 | 65 |
![]() GV-17L | 1.2 - 2.5 | 20.6 | 965 | 900 | 270 | 545 | 110 |
![]() GV-32L | 3 - 4 | 24.5 | 1200 | 1020 | 330 | 660 | 140 |
![]() GV-42L | 4 - 5 | 24.5 | 1300 | 1200 | 425 | 760 | 230 |
![]() GV-62L | 6 - 8 | 27.4 | 1670 | 1360 | 470 | 905 | 370 |
![]() GV-122L | 12 - 14 | 34.3 | 1860 | 1580 | 560 | 1030 | 570 |
![]() GV-202L | 20 - 22 | 34.3 | 2260 | 1880 | 695 | 1260 | 1080 |
![]() GV-302L | 30 - 37 | 34.3 | 2540 | 2110 | 825 | 1440 | 1670 |
![]() GV-402L | 40 - 45 | 34.3 | 2810 | 2340 | 910 | 1590 | 2480 |
・ Single two-way hydraulic piping is required.
・ The claw of GV-09L, GV-17L, and GV-32L does not have a box construction.
・ To prevent damage to the hydraulic excavator stick, we recommend reinforcing the arm that has the Grasper series installed.
・ The attachment cannot be installed on a hydraulic excavator of a different class.
