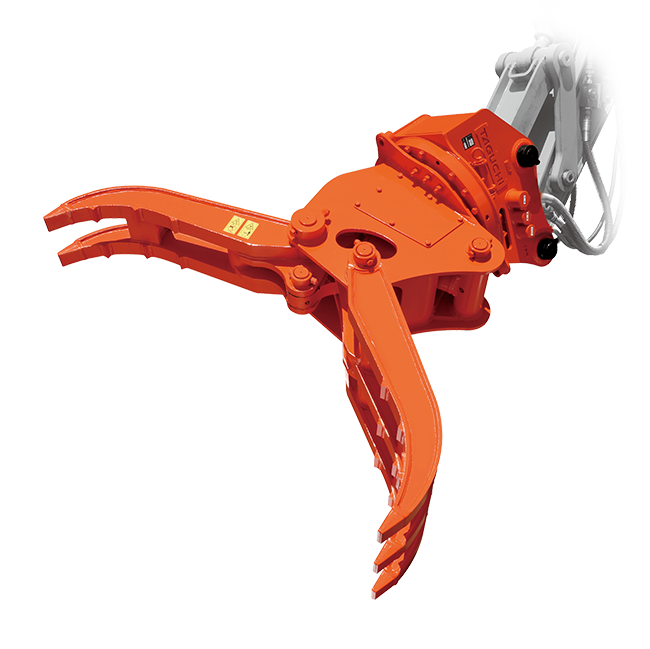

Rotational Grapple Grasper VS

High Efficiency Grapple with Tilt and 360° Rotating Action

Tilt and 360° rotating action makes loading and demolition work safely and easily in various job sites.
Long-selling and flagship Product of TAGUCHI.

Easy Material Handling

Since it is possible to tilt and 360° rotating action while grasping an object, you can do a loading and demolition work safely and easily in various job sites.

Cuboid objects are also easy to load.

Powerful performance is demonstrated as a material handling machine. Cuboid objects are also easy to load without worrying about the working posture of the heavy machinery. The grappling operation is controlled with a foot pedal, while the rotational operation is controlled with the other pedal. Double two-way hydraulic piping is required for grappling operation and rotational operation.

SPEC

Model name	Class of excavator[ton]	Max. operating pressure[MPa]	Max. claw opening A[mm]	Length B[mm]	Claw width C[mm]	Claw length D[mm]	Mass[kg]	Rotation speed/Fixed	Rotation speed/Changeable
GV-16S	1.2 - 2.5	24.5	820	985	250	500	110	Yes	Optional
GV-32S	3 - 4	24.5	1200	1230	330	660	190	Yes	Optional
GV-42S	4 - 5	24.5	1300	1390	425	760	310	Yes	Optional
GV-62S	6 - 8	27.4	1670	1700	470	905	520	Yes	Optional
GV-122S	12 - 14	34.3	1860	1900	560	1030	860	No	Yes
GV-202S	20 - 22	34.3	2260	2330	695	1260	1490	No	Yes
GV-250S	22 - 25	34.3	2260	2320	695	1260	1500	No	Yes
GV-302S	30 - 37	34.3	2540	2600	825	1440	2220	No	Yes
GV-402S	40 - 45	34.3	2810	2890	910	1590	3390	No	Yes

･ Double two-way hydraulic piping is required. (However, for models other than GV-16S, GV-32S, and GV-42S, drain piping is required when the back pressure is 2 MPa. or higher.)
･ The claw of GV-16S and GV-32S does not have a box construction.
･ To prevent damage to the hydraulic excavator stick, we recommend reinforcing the arm that has the Grasper series installed.
･ The attachment cannot be installed on a hydraulic excavator of a different class.
