[Electromagnetic Switching Type] Rotational Grapple Rotational Grasper SC
Single two-way piping enables simultaneous grappling operation and 360-degree rotation!
Single two-way piping enables grappling operation (opening and closing the jaws) as well as 360-degree rotation! The next-generation Rotational Grasper can be freely operated with a simple remote control operation.
We propose a comfortable grappling operation with a machine with single two-way hydraulic piping.
The operation of the Rotational Grasper, which enables simultaneous grappling operation and 360-degree rotation, can also be performed on a machine with single two-way hydraulic piping! Grappling operation (opening and closing the jaws) as well as 360-degree rotation is enabled. With a simple remote control operation, the angle of the jaws can be freely adjusted by rotating leftward or rightward.
A simple wiring to the excavator completes the setup!

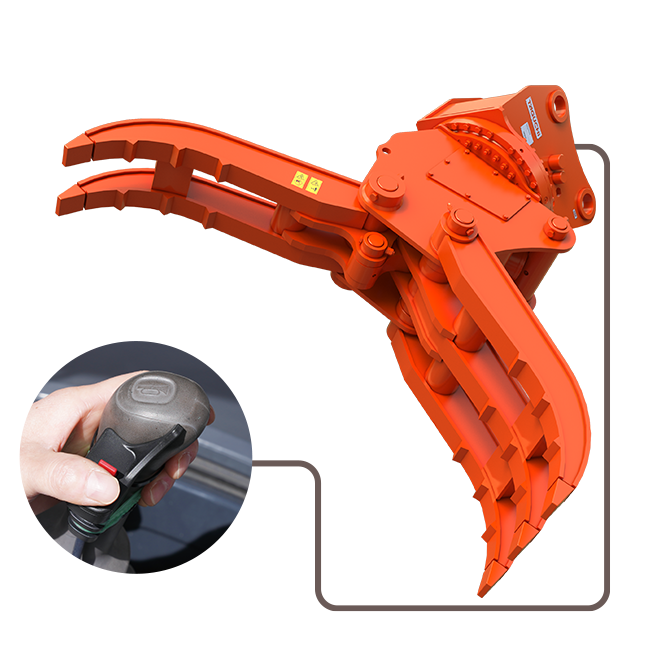

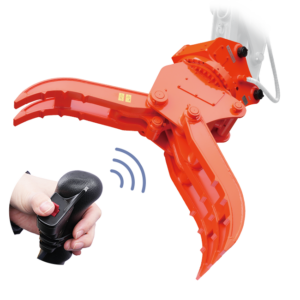

For the Rotational Grasper, which is a remote-controlled rotational type, Grasper SOL (GV-SC) and Grasper DYNA (GV-SD, *refer to a separate page) are available. Unlike Grasper DYNA, which is a wireless type, Grasper SOL is a wired type that requires electrical wiring on the hydraulic excavator side. Installation of the supplied power cable and control switch (SOL kit) completes the setup.
Equipped with a 360-degree remote-controlled rotation mechanism!

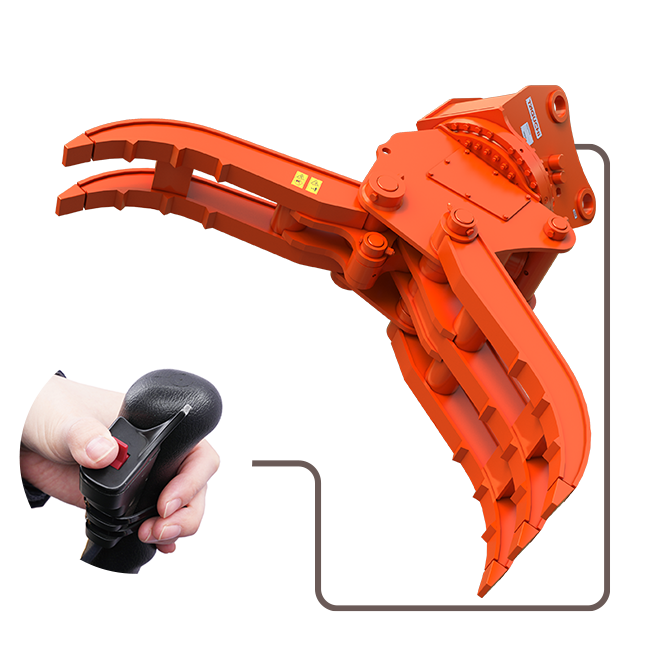

Just install the control switch for claw rotation on the accessory socket. The remote control can be operated immediately after installation. The claws open and close with a pedal operation, and Grasper rotates leftward or rightward by operating the remote control for rotation while stepping on the pedal.
SPEC
| Model name | Class of excavator[ton] | Max. operating pressure[MPa] | Max. claw opening A[mm] | Length B[mm] | Claw width C[mm] | Claw length D[mm] | Cigarette socket voltage[V] | Mass[kg] |
|---|---|---|---|---|---|---|---|---|
 GV-16SC | 1.2 - 2.5 | 24.5 | 820 | 985 | 250 | 500 | DC12 | 110 |
 GV-32SC | 3 - 4 | 24.5 | 1200 | 1230 | 330 | 660 | DC12 | 200 |
 GV-42SC | 4 - 5 | 24.5 | 1300 | 1390 | 425 | 760 | DC12 | 310 |
 GV-62SC | 6 - 8 | 27.4 | 1670 | 1700 | 470 | 905 | DC24 | 520 |
 GV-122SC | 12 - 14 | 34.3 | 1860 | 1900 | 560 | 1030 | DC24 | 850 |
 GV-202SC | 20 - 22 | 34.3 | 2260 | 2330 | 695 | 1260 | DC24 | 1490 |
･ Single two-way hydraulic piping is required.
･ If the cigar socket voltage of the hydraulic excavator to be used is different from the above, contact your Taguchi dealer.
･ The claw of GV-16SC and GV-32SC does not have a box construction.
･ To prevent damage to the hydraulic excavator stick, we recommend reinforcing the arm that has the Grasper series installed.
･ The attachment cannot be installed on a hydraulic excavator of a different class.
